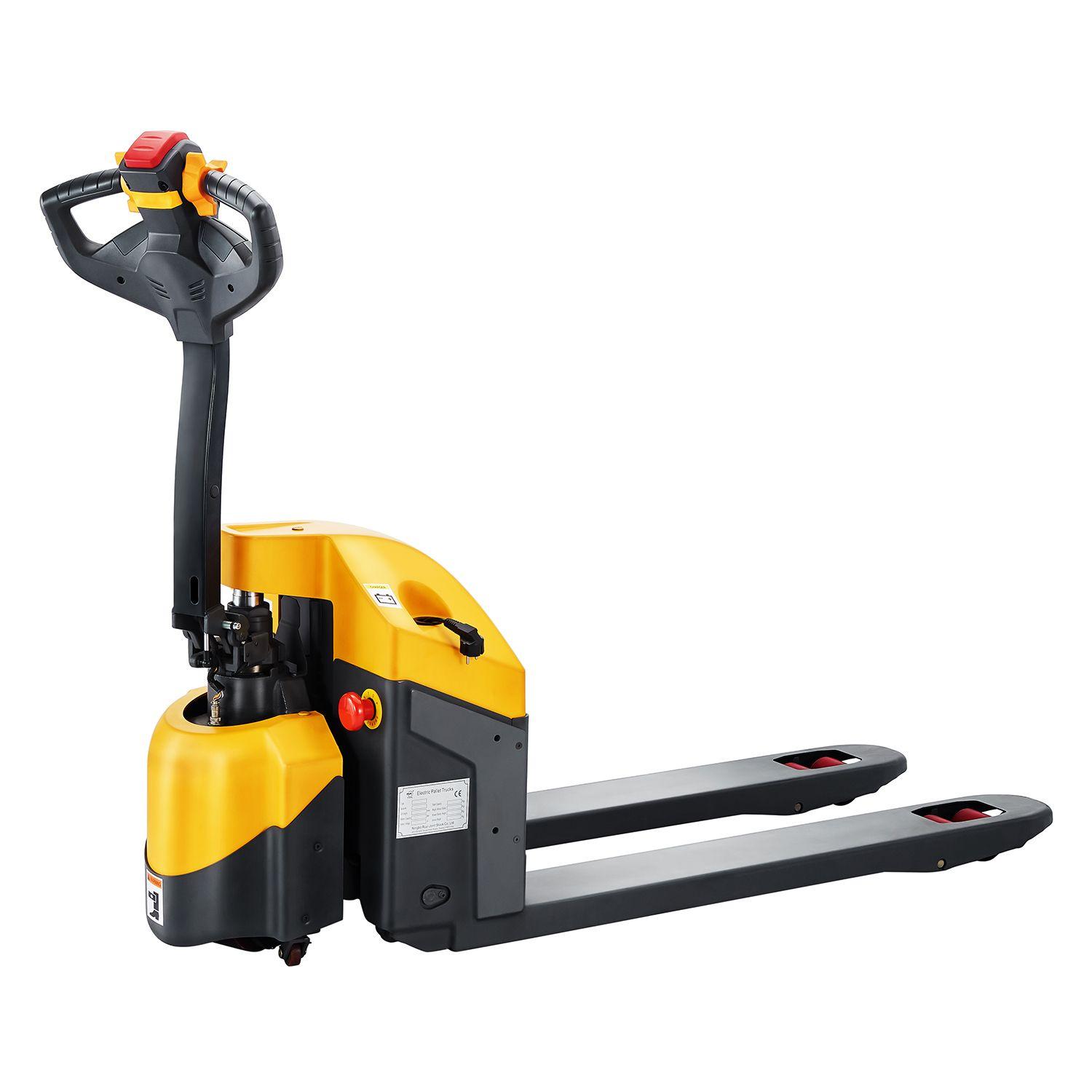

The CBD15-Z is a walkie fully electric pallet truck, belonging to the economical warehouse material handling equipment series. With a rated capacity of 1.5 tons, it is mainly designed for horizontal pallet transportation, loading and unloading operations, and internal warehouse logistics distribution.
Positioned between traditional manual hydraulic pallet trucks and standard electric pallet trucks, the CBD15-Z combines the compact size and excellent maneuverability of a hand pallet truck with the advantages of electric travel and electric lifting, significantly reducing manual labor intensity. It is widely used in applications such as e-commerce warehouses, manufacturing workshops, logistics distribution centers, supermarket distribution warehouses, and light industrial storage facilities.
In terms of product structure, the CBD15-Z adopts a walk-behind operation design, allowing operators to control forward movement, reverse movement, lifting, and lowering functions through a multifunctional handle. The truck features a compact structure with dimensions similar to a traditional hand pallet truck, enabling easy operation in narrow aisles, elevators, truck compartments, and inside containers.
With its small turning radius and high maneuverability, the CBD15-Z performs well in space-limited environments such as warehouse racking areas and loading docks. It is particularly suitable for small and medium-sized warehouses as well as high-density storage applications.
Technical Specifications
| Specification | Parameter |
|---|---|
| Model | CBD15-Z |
| Equipment Type | Electric Pallet Truck |
| Rated Load Capacity | 1500 kg |
| Drive Type | Electric Drive |
| Operation Type | Walk-behind |
| Power Source | Rechargeable Battery |
| Load Center | 600 mm |
| Fork Lowered Height | Approx. 75–85 mm |
| Maximum Lifting Height | Approx. 190–205 mm |
| Fork Length | 1150 mm (standard) |
| Fork Width | 550 / 685 mm (optional) |
| Drive Motor Power | Approx. 0.6–1.0 kW |
| Lift Motor Power | Approx. 0.5–0.8 kW |
| Battery Voltage | 24V |
| Battery Type | Lead-acid or Lithium Battery |
| Travel Speed | Approx. 3–5 km/h |
| Brake Type | Electromagnetic Brake |
| Turning Radius | Approx. 1350–1600 mm |
| Service Weight | Approx. 150–250 kg |
